ePOWER Tool

ePOWER Electric Setting Tool | Non-Explosive Downhole Power Unit

Introduction

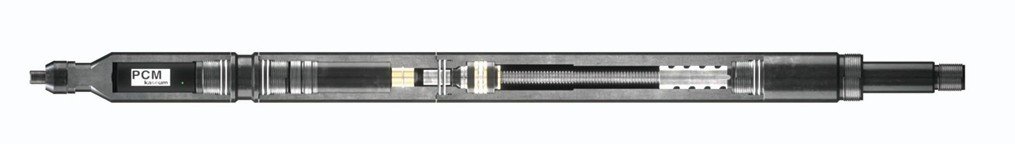

The ePOWER Electro-Mechanical Setting Tool replaces traditional explosive and hydraulic systems with a clean, efficient electric power source. By integrating a high-density battery, precision motor, and robust gearbox, the tool generates up to 100 klb / 45 tons of setting force on command, initiated by a simple electrical signal from the surface.

Key Features & Benefits

• Clean & Safe Power: Fully non-explosive and non-hydraulic. No external pressure is generated inside the tool, ensuring compliance with the highest HSE standards and simplifying logistics.

• Versatile Deployment: Compatible with electric line (E-line), slickline, coiled tubing, and standard tubing. For cable operations, no continuous surface power is required; the tool activates via signal and runs on internal battery power.

• High Reliability: A new, single-use circuit is utilized for every run, eliminating the electronic instability associated with refurbished components.

• Superior Stroke Performance: The electro-mechanical design offers excellent stroke control, making it suitable not only for setting tools but also for light perforating and stroking applications.

• Customizable Configurations: Available in four sizes with temperature ratings from 135°C to 225°C. Choose from two material grades for corrosive environments and two setting speeds to match specific plug or packer requirements.

• Dual-Action Capability: The lever mechanism can be configured for either push or pull settings based on operational needs.

Applications

• Well Completion: Setting bridge plugs and packers via e-line or slickline in vertical and horizontal wells.

• Intervention: Serves as a primary power unit for downhole tools, enabling punching, fishing, milling, and rolling operations when connected to compatible modules.

• Fishing: Using full strength to pull or push.
